Circuit board manufacturing

PCB production and PCB assembly with the highest precision

At Mitac, we are experts in PCB manufacturing and PCB assembly, combining advanced technology with extensive experience to create customized solutions of the highest quality.

Our focus is on meeting our customers' specific needs through flexible and cost-effective solutions, whether for prototyping, small batches or volume production.

EMS - More than just circuit board manufacturing

PCB manufacturing is part of a bigger picture. As an EMS (Electronic Manufacturing Services) partner, we offer not only PCB assembly, but also services such as testing, component sourcing and final product assembly. By managing the entire process, we can ensure smooth flows and cost-effective production.

With our solid expertise in contract manufacturing, including subcontracting, we are a reliable partner for both small and large projects.

Global reach, local presence

Mitac has customers and partners in several countries, including the United States and the Netherlands, demonstrating our global reach and reliability.

At the same time, we have a strong local presence in Sweden, with the majority of our customers in areas such as Stockholm, Uppsala, Västerås and Enköping.

Our aim is to make it easy for our customers - whether for single prototypes or larger series.
With flexible production in Bro, just outside Stockholm, we can quickly adapt to different needs and deliver products that are ready for use.

Our services in printed circuit board manufacturing

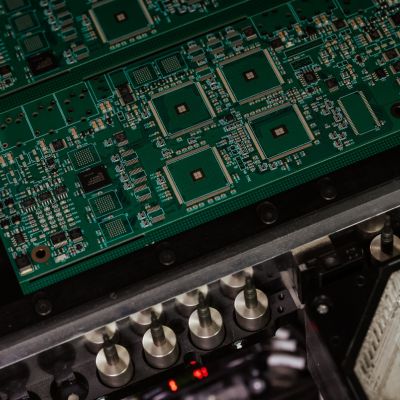

Surface mounting SMT

Mitac's modern machinery enables efficient and high-quality surface mounting, tailored to customer needs.

Our machinery includes two advanced automated assembly lines and precision component handling equipment, ensuring accuracy and reliability at every stage of the process.

To ensure we deliver products of the highest standard, we use quality control systems, including SPI (Solder Paste Inspection) and AOI (Automated Optical Inspection).

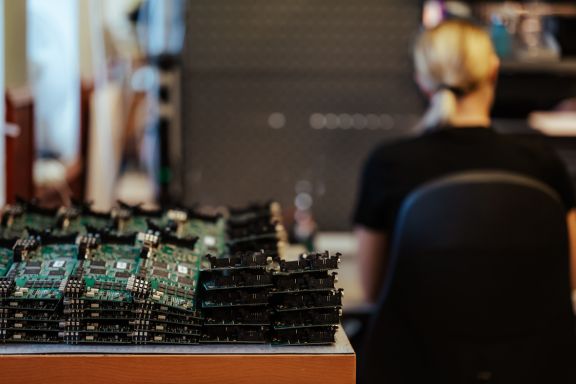

Hole assembly

Mitac has extensive experience and offers manual hole assembly for those components that require it, ensuring that even the most complex projects receive the care they need. Our skilled and experienced staff are constantly working to streamline processes and guarantee delivery of the highest quality products.

Manual hand soldering means that our experienced technicians carefully handle each component, ensuring perfection and optimal results. We use the best tools and techniques to ensure durable and reliable soldering.

Prototyping

Rapid and accurate prototyping to speed up product development and ensure the design meets all requirements.

Small batch and volume production

Flexible manufacturing for both small and large volumes, tailored to customer needs.

Material handling

We can handle the sourcing of both PCBs and components to provide you with a complete solution.

Why Mitac?

With over 30 years in the electronics industry, we are a natural partner that puts quality and precision in focus. With us, every customer relationship is of the highest importance. We work actively to deliver customized solutions to meet your unique needs.

We use modern machinery and equipment to ensure efficiency and quality at every stage of the process. Our team of experienced technicians has many years of combined experience in electronics production.

Contact us

Email address

Phone number

Address

Ullevivägen 10 2tr | 197 40 Bro

FAQ

What types of printed circuit boards can Mitac produce?

We manufacture several different types of circuit boards depending on the need and application:

  • Single-layer PCB - For simple electronics solutions
  • 2-layer PCB - For standard consumer and
    industrial applications
  • Multilayer PCB - Up to 16 layers for advanced systems
  • Flexible printed circuit boards (flex PCBs ) - For products where the board needs to bend
  • Rigid-flex PCB - Combination of rigid and flexible part, space efficient design
Does Mitac provide both prototypes and mass production?

Yes! We offer both one-off prototypes and high-volume serial production. Whatever the phase of your project, we will help you from the first test board to full production.

What files do you need to start manufacturing?

To start manufacturing, we need:

  • Gerber files (RS-274X standard)



  • BOM (Bill of Materials) - Component list in Excel or CSV



  • Assembly drawings - Clear layout in e.g. PDF



  • Pick-and-place-data (XY files) - For machine assembly



  • Stencil drawing - If SMT assembly is to be done
  • Model of product - If Boxbuild is to be performed



We are happy to help you review the documentation if anything is missing or needs to be adjusted.

Can you help with design and layout?

Yes, we can. For design and layout we use an external partner.

Do you manufacture in Sweden or abroad?

All our production takes place here in our premises in Upplands Bro. Read more about us.

Can I get help with component sourcing and assembly?

Yes, we offer:

  • Component purchases - Via trusted suppliers



  • Assembly (SMT and THT) - For both prototypes and series



  • Stencil making - Customized to your layout



  • Testing - Visual check, AOI and simple functional test if needed

  • Boxbuild
  • Cable assembly
  • BGA and QFN exchanges
How much does it cost to produce a circuit board at Mitac?

The price is affected by:

  • Number of layers and complexity of the card



  • Choice of materials and finishes



  • Volume and delivery time



  • Any special requirements (HDI, plating, impedance control, etc.)



Send us your documentation and we'll get back to you with a clear quote - no surprises.

How do I make a request for a quote?

Send an email to adam.bergqvist@mitac.se with the following:

  • Gerber files



  • BOM and assembly drawing



  • Desired volume



  • Any requirements or questions



Alternatively, you can use the contact form here on the website. We usually respond within 1-2 working days.
